ELECTRO-MAGNETIC COUNTER
|
|
Economical
totalizer with push button reset, suitable for amusement equipment,
machine tools, office machines, test instruments, ...etc.
|
 |
 |
 |
|
|
Specs.
/ Models
|
LFC-5,
LFC-5S, LFC-6, LFC-6S
|
|
Voltage
|
AC110V,
220V
|
DC-12V,
24V
|
|
Tolerance
|
Rated
Voltage -15% ~ +10%
|
|
Consumption
|
3VA
|
3.5W
|
|
Counting
Speed
|
10
CPS
|
|
Life
|
20,000,000
Times
|
|
Test
|
AC-1,
500V (50/60Hz) 1 minute (Dielectric)
|
|
|
|
|
|
|
|
|
|
|
MACHINE COUNTER
|
|
LFC-5P-RS

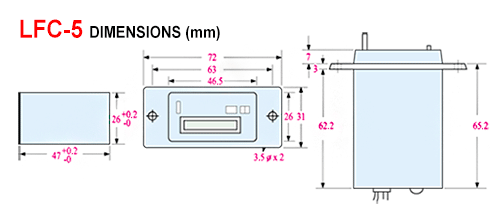

DIMENSIONS (mm)
SPECIFICATIONS :
Digit : 5
Max. Speed : 800 Times / Minute
Weight : 68g
Color : Gray
|
|
|
|
ELECTRO-MAGNETIC COUNTER [ W/0 RESET ]
|
|
Economical
totalizer with push button reset, suitable for amusement equipment,
machine tools, office machines, test instruments, ...etc.
|
|
|
|
Specs.
/ Models
|
LFC-6N,
LFC-6NS, LFC-6NN
|
|
Voltage
|
DC-12V,
6V
|
|
Tolerance
|
Rated
Voltage -15% ~ +10%
|
|
Consumption
|
3.5W
|
|
Counting
Speed
|
10
CPS
|
|
Life
|
10,000,000
Times
|
|
Test
|
AC-1,
500V (50/60Hz) 1 minute (Dielectric)
|
|
|
|
|
|
 |
|
|
