Mini Size Ball Retainer CSS Series

BALL : CHROME STEEL BALLS

JIS GRADE : 10

DIN GRADE : Ｉ

PREFERRED GAUGE : ± 0

Ball Cage Material : Brass  ( Unit : mm )

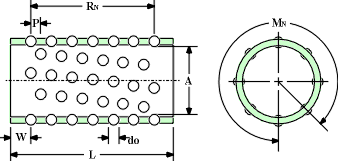

ITEM

A

L

do

Mn

Rn

BALLS

P

W

CCS 3-1.0-10

3

10

1.0

4

6

24

1.2

2.0

CCS 3-1.0-15

3

15

1.0

4

10

40

1.2

2.1

CCS 3-1.0-20

3

20

1.0

4

14

56

1.2

2.2

CCS 4-1.0-10

4

10

1.0

5

6

30

1.2

2.0

CCS 4-1.0-15

4

15

1.0

5

10

50

1.2

2.1

CCS 4-1.0-20

4

20

1.0

5

13

65

1.3

2.2

CCS 4-1.0-25

4

25

1.0

5

16

80

1.4

2.0

CCS 5-1.0-10

5

10

1.0

6

6

36

1.2

2.0

CCS 5-1.0-15

5

15

1.0

6

10

60

1.2

2.1

CCS 5-1.0-20

5

20

1.0

6

13

78

1.3

2.2

CCS 5-1.0-25

5

25

1.0

6

17

102

1.3

2.1

CCS 5-1.0-30

5

30

1.0

6

21

122

1.3

2.0

CCS 6-1.0-10

6

10

1.0

7

6

42

1.2

2.0

CCS 6-1.0-15

6

15

1.0

7

10

70

1.2

2.1

CCS 6-1.0-20

6

20

1.0

6

13

78

1.3

2.2

CCS 6-1.0-25

6

25

1.0

6

17

102

1.3

2.1

CCS 6-1.0-30

6

30

1.0

6

21

122

1.3

2.0

CCS 8-1.0-10

8

10

1.0

7

6

42

1.2

2.0

CCS 8-1.0-15

8

15

1.0

7

10

70

1.2

2.1

CCS 8-1.0-20

8

20

1.0

7

12

84

1.4

2.3

CCS 8-1.0-25

8

25

1.0

7

16

112

1.4

2.0

CCS 8-1.0-30

8

30

1.0

7

18

126

1.5

2.25

CCS 8-1.0-40

8

40

1.0

7

25

175

1.5

2.0
