Ball Retainer AMS Series

	BALL : CHROME STEEL BALLS		JIS GRADE : 10
	DIN GRADE : Ｉ		PREFERRED GAUGE : ± 0

Ball Cage Material : Aluminum Alloy ( Unit : m/m )

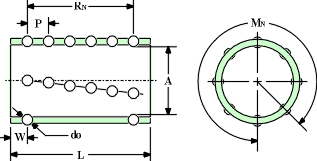

ITEM	A	L	do	Mn	Rn	BALLS	P	W
AMS 1950	19	50	3	12	8	96	5.5	5.75
AMS 1960	19	60	3	12	10	120	5.5	5.25
AMS 2050	20	50	3	12	8	96	5.5	5.75
AMS 2060	20	60	3	12	10	120	5.5	5.25
AMS 2250	22	50	3	14	8	112	5.5	5.75
AMS 2260	22	60	3	14	10	140	5.5	5.25
AMS 2360	23	60	3	14	10	140	5.5	5.25
AMS 2475	24	75	3	16	13	208	5.45	4.8
AMS 2550	25	50	3	16	8	128	5.5	5.75
AMS 2560	25	60	3	16	10	160	5.5	5.75
AMS 2575	25	75	3	16	13	208	5.45	4.8
AMS 2775	27	75	3	16	13	208	5.45	4.8
AMS 2860	28	60	4	14	8	112	6.5	7.25
AMS 2875	28	75	4	14	11	154	6.5	5.0
AMS 3060	30	60	4	14	8	112	6.5	7.25
AMS 3075	30	75	4	14	11	154	6.5	5.0
AMS 3260	32	60	4	16	8	128	6.5	7.25
AMS 3275	32	75	4	16	11	176	6.5	5.0
AMS 3290	32	90	4	16	13	208	6.5	6.0
AMS 3685	36	85	4	16	12	192	6.5	6.75
AMS 3690	36	90	4	16	13	208	6.5	6.0
AMS 3870	38	70	5	16	8	128	8.0	7.0
AMS 3890	38	90	5	16	11	176	7.9	5.5
AMS 4090	40	90	5	16	11	176	7.9	5.5
AMS 4590	45	90	5	18	11	198	7.9	5.5
AMS 45110	45	110	5	18	13	234	8.0	7.0
AMS 5090	50	90	5	20	11	220	7.9	5.5
AMS 50110	50	110	5	20	13	260	8.0	7.0
AMS 6090	60	90	5	22	11	242	7.9	5.5
AMS 60110	60	110	5	22	13	286	8.0	7.0
AMS 80130	80	130	5	32	15	480	8.0	9.0
